This procedure is used to repair a completely dead Samsung LED TV. This procedure can also be applied to other TVs with a similar power supply system.
The Samsung LED TV discussed is model UA32FH4003R, totally off because the diode broke in the power supply.
The following YouTube video shows how to fix it.
The following photo shows the inside of the TV when the back cover is opened.
The circuit with the brown PCB on the right is the power supply circuit.
The circuit with the brown PCB on the right is the power supply circuit.

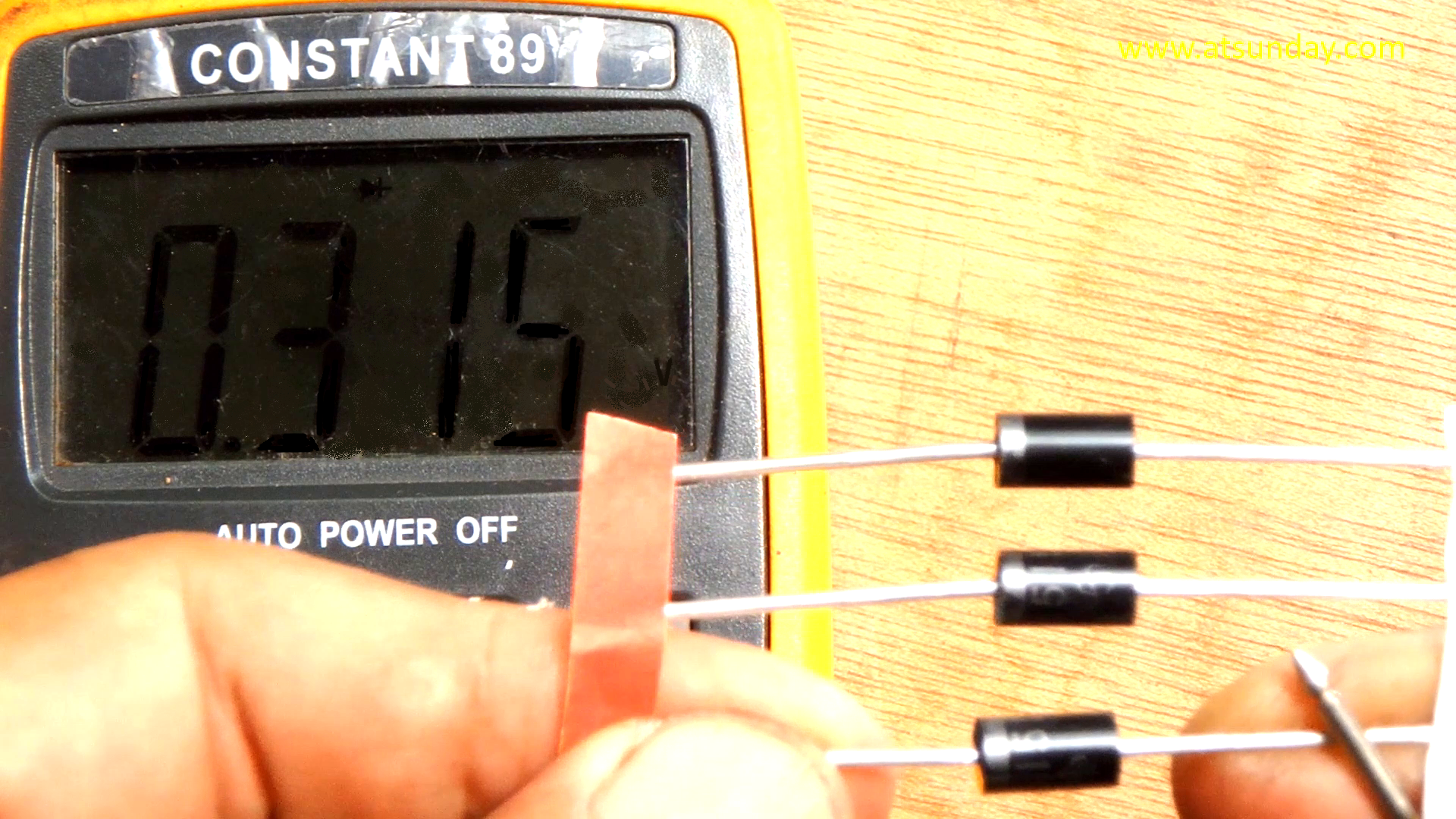

The voltage specification for this diode, if given a reverse current, is zero volts. If a forward current is applied, the voltage is around 0.15 to 0.45 volts, in the video it reads 0.315 volts.
Make sure the fuse and power cord are still in good condition before performing this procedure.
